The DIKE 860B Driving Cleaning machine adopts a humanized industrial design. It features simple, practical and user-friendly details. It perfectly fits daily heavy-duty cleaning for commercial and industrial sites.
A built-in smart LCD control panel shows real-time data. Operators can check the remaining battery level, ongoing working duration and fault reminder codes at a glance. They can monitor the machine’s working status anytime.
Integrated one-button controls manage all core functions. These include water output, brush rotation and vacuum suction. New operators can master full operation skills in minutes with no professional training required.
The machine body comes with a unique transparent PC sewage observation window. Staff can directly view internal sewage turbidity and dirt accumulation. They can clean filter components and drain sewage in a timely manner. This prevents pipeline blockage and declining suction efficiency.
The core cleaning unit uses a modular detachable structure. Users can disassemble and maintain it daily without tools. This cuts time and labor costs effectively. Built-in high-tension springs support adjustable brush pressure up to 65kg. Dual brush discs cling closely to uneven ground. They thoroughly remove industrial oil stains, tire marks, cement dust and food residues from concrete, epoxy, marble and terrazzo floors.
High-quality wear-resistant rubber scrapers fit tightly against the ground. The machine finishes floor washing and full water suction in one single pass. It leaves zero water residue on floors. It completely eliminates slip-and-fall risks for on-site staff and vehicles.
We offer two independent battery options to meet diverse usage demands. Lead-acid batteries support 4 to 6 hours of daily routine cleaning. Fast-charging lithium batteries enable 8 hours of non-stop continuous work. They suit high-frequency, long-hour cleaning tasks in large venues perfectly.
DIKE provides full-cycle, one-stop support for all global buyers. Our professional team tailors exclusive cleaning solutions. We customize plans according to customers’ site size, floor material and daily working hours. We supply complete export certification documents to ensure smooth customs clearance in all countries. We deliver global spare parts quickly and offer lifelong free remote technical guidance.
We also support full OEM and ODM customization services. These cover custom brand logos, exclusive body colors, functional upgrades and multi-language manuals. We help global distributors build independent brand advantages in local markets easily.
Core Technical Advantages & Detailed Component Design of DIKE 860B Driving Floor Cleaning Scrubber

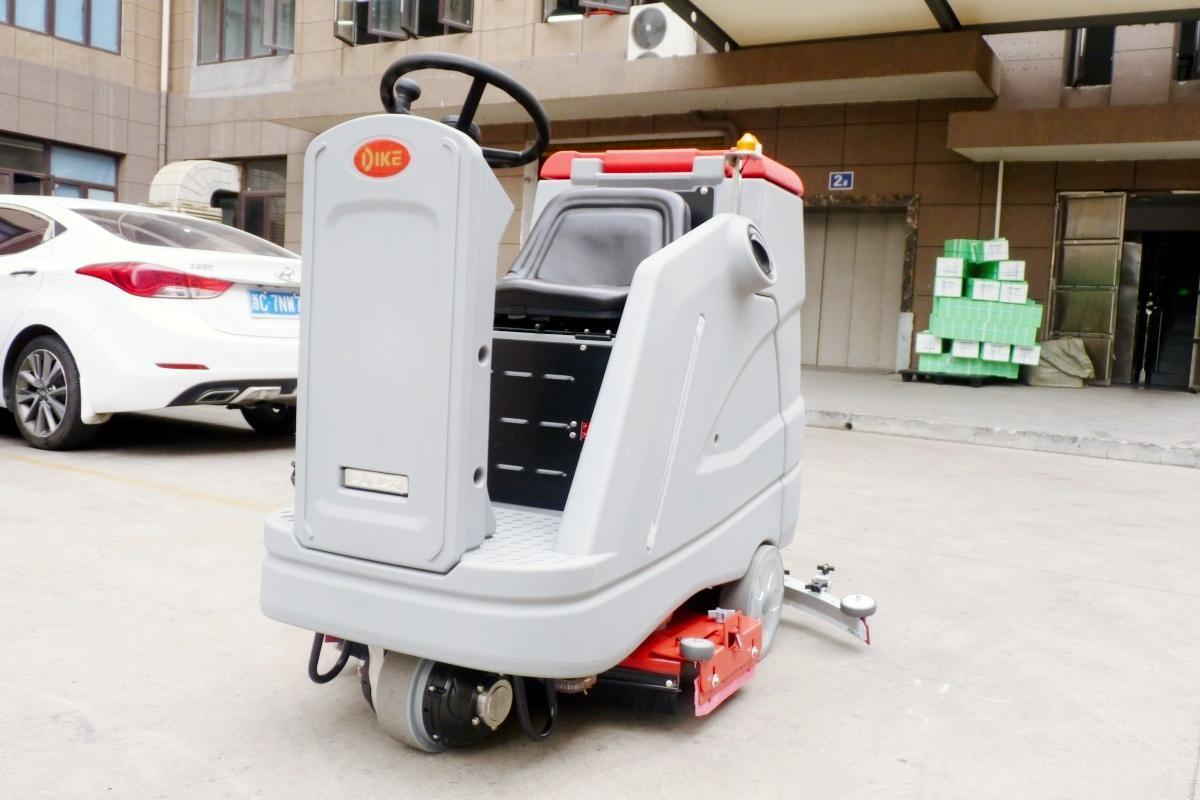

The DIKE 860B ride-on floor scrubber is our classic medium-large model. We design it specifically for cleaning areas between 1,000 and 15,000 square meters. Every detailed design reflects our rich experience in industrial cleaning scenarios. It outperforms entry-level low-cost scrubbers on the market. The split component diagram fully displays our refined industrial design for stable operation and easy maintenance.

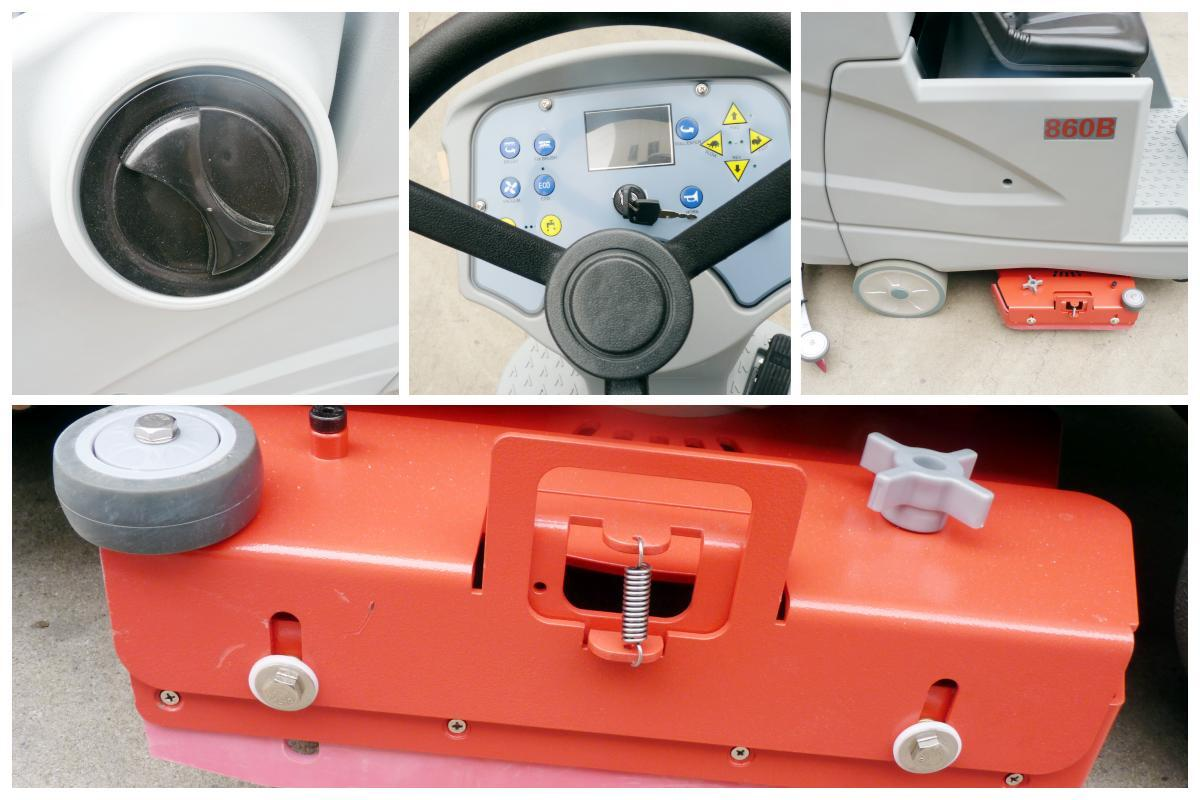

Ergonomic Driving Control Panel & Steering Assembly
Automotive-style integrated steering wheel and smart control panel form the core operation hub of the 860B model. We design them for intuitive use and fatigue-free daily operation.
Central LCD Digital Display: It monitors remaining battery capacity, real-time working hours, water tank liquid level and equipment fault alarm codes. Operators grasp the machine’s full status instantly with no guesswork.
Color-Coded Independent Function Buttons: Blue, yellow and warning triangle buttons control water supply, brush rotation, vacuum suction and adjustable brush pressure separately. High-visibility color marks prevent misoperation in busy working environments.
Key Power Lock Switch: The standard vehicle-style key ignition cuts off power completely when the machine parks. It stops unauthorized accidental startup and improves on-site safety.
Thickened Anti-Slip Steering Wheel: The large-diameter wheel features a matte textured surface for stable control. It pairs with a compact turning radius. The machine navigates narrow warehouse aisles, mall corridors and parking lot corners smoothly.
Large-Capacity Separate Sewage Observation Window
The circular transparent sewage tank inspection window is a user-centric upgrade. Few budget scrubbers adopt this practical design.
We make it with thick impact-resistant transparent PC material. Operators check sewage turbidity, floating debris and tank water level visually without opening the tank cover.
Staff can judge the best time to drain sewage or clean the filter screen quickly. This avoids suction system blockage from excessive sediment buildup and greatly extends the vacuum motor’s service life.
The sealed curved edge design prevents sewage leakage. It works stably even during long-term bumpy driving in factory workshops.
Model Identification & Quick-Detachable Scrubbing Assembly
The machine side body clearly prints the 860B model number. It simplifies model identification for warehouse management, spare parts matching and after-sales maintenance. The exposed red scrubbing base unit showcases our modular quick-detachable design.
Users can disassemble the entire washing and suction assembly rapidly without professional tools. It simplifies brush disc replacement, scraper strip maintenance and daily deep cleaning of the base.
Independent auxiliary support rollers sit on both sides of the scrubbing head. They keep the cleaning unit parallel to the ground and ensure uniform brush pressure across the full cleaning width.
Heavy-Duty Adjustable Scrubbing Base
This red integrated scrubbing chassis serves as the core cleaning execution module. We build it for heavy-duty industrial stain removal with highly adjustable mechanical structures.
Spring-Assisted Brush Pressure Regulation: Built-in high-tensile compression springs deliver up to 65kg adjustable downward pressure. It presses dual brush discs tightly against uneven concrete, epoxy and terrazzo floors to grind off oil stains, tire marks and industrial dust. The spring structure automatically buffers ground bumps and protects brushes from damage.
Hand-Twist Adjustment Knobs: Large star-shaped plastic knobs on both sides support tool-free height fine-tuning for the suction scraper. The machine adapts to uneven ground. Users can replace worn rubber suction strips in just 2 minutes.
Wear-Resistant Side Support Rollers: Thick solid rubber side rollers stop the metal scrubbing frame from direct ground friction. They protect floor surfaces and reduce frame abrasion during long-term heavy use.
Corrosion-Resistant Sprayed Metal Frame: The whole base undergoes rust-proof sandblasting and red anti-corrosion paint treatment. It resists erosion from alkaline cleaning agents, oil and sewage in food factories, chemical workshops and wet parking lots.
Quick-Lock Assembly Bolts: Standard exposed bolts support fast disassembly for scrapers and brush trays. They lower daily maintenance difficulty and cut spare part replacement time by over 50%.
Ergonomic Driving Structure for All-Day Comfortable Operation
We fully consider operators’ long-hour working scenarios. The machine adopts an integrated one-piece driving cockpit design. It equips with a high-density elastic leather seat with front and rear adjustment. It effectively reduces lumbar fatigue during 6–8 hours of continuous work.
The anti-slip automotive-style steering wheel supports flexible turning with a small radius. The machine moves smoothly in narrow factory aisles, supermarket shelf passages and underground parking lot corners.
We simplify the foot pedal layout for intuitive operation. One-button control integrates water release, brush rotation and vacuum suction functions. Novice operators master full machine operation after just 10 minutes of simple training. The front LED work light ensures safe cleaning in dim underground parking lots and warehouses.
High-Efficiency Integrated Washing & Suction System
The core cleaning module adopts a dual-brush heavy-duty washing structure. It delivers up to 65kg adjustable brush pressure. It completely removes stubborn oil stains, cement dust, tire marks and food residue from concrete, epoxy, marble and terrazzo floors.
A high-power vacuum motor generates strong negative pressure. It matches with an integral rubber suction scraper fitted with wear-resistant imported rubber strips. The curved scraper fits ground surfaces closely. It achieves zero water residue after one cleaning pass and eliminates secondary slip risks for personnel and vehicles.
The machine uses separated large-capacity clean and sewage tanks. It supports 3.5 hours of uninterrupted continuous cleaning without frequent water refills. It boosts overall cleaning efficiency 3–5 times compared with traditional hand-push scrubbers.
Durable Anti-Corrosion Chassis & Low Maintenance Cost
We build the whole machine frame with thickened carbon steel and anti-rust electrophoretic coating. Water tanks, pipelines and other liquid-contact parts use anti-corrosion PP plastic and stainless steel. The machine adapts to harsh environments such as chemical factories, food processing workshops and wet underground garages.
The rear driving wheels use wear-resistant solid rubber tires. They avoid flat tire failures caused by metal scraps and hard debris on factory floors. All wearable parts like brush discs and suction strips adopt standard universal specifications. We provide global spare parts supply channels. Vulnerable parts feature a longer replacement cycle than competing products. They greatly reduce customers’ long-term post-operation maintenance costs.
Dual Battery Configuration for Diverse Demands
We provide two power versions to meet differentiated customer needs: maintenance-free lead-acid batteries and fast-charging lithium iron phosphate batteries.
The lead-acid version offers high cost performance. It suits 4–6 hours of daily conventional cleaning. The lithium battery version supports 2.5-hour fast charging and over 2,000 charge cycles. It fits 8-hour uninterrupted all-day cleaning for high-frequency sites like large logistics centers and hypermarkets.
Both battery versions pass strict waterproof and dustproof tests. They run stably in low-temperature and high-humidity conditions.
Wide Application Scenarios & Real Client Value Feedback
The DIKE 860B ride-on floor scrubber gains wide recognition across multiple industries. It solves core pain points for facility management enterprises: high labor costs, low cleaning efficiency and unsatisfactory cleaning results.
Manufacturing Factories & Industrial Parks: It thoroughly cleans workshop oil stains, metal dust and passage tire marks. It replaces 5–8 manual mopping workers and cuts annual labor costs by over 60%.
Commercial Complexes, Shopping Malls & Supermarkets: The low-noise operation design avoids disturbing customers during business hours. One-pass washing and drying keeps shopping floors dry and tidy at all times.
Underground Parking Lots & Logistics Warehouses: Its wide cleaning width and long battery life shorten daily cleaning time for thousands of square meters of ground greatly.
Hospitals, Schools & Public Institutions: The closed sewage recovery system reduces bacterial cross-contamination risks. It meets strict public sanitation standards.
Hotels, Exhibition Halls & Airport Terminals: The gentle cleaning mode protects high-value marble and tile floors without leaving scratches.
A facility manager from a German industrial park shared real feedback after 3 years of using the DIKE 860B: “We previously bought low-cost ride-on scrubbers from two brands. They broke down frequently within half a year, with poor suction and frequent spare part replacements. After we switched to DIKE 860B, the machines run stably daily with no major failures. The after-sales team delivers spare parts to Germany within 7 working days. The overall operating cost is much lower than our old equipment.” This authentic overseas review fully proves our product stability and global service capability.
Complete Global Support System: Eliminate Customer Purchase Worries
Many overseas buyers hesitate to import industrial cleaning machines due to worries about technical guidance, spare parts supply and after-sales maintenance. DIKE builds a full-cycle service system covering pre-sales, in-sales and after-sales links. We safeguard every customer’s interests and consolidate brand credibility.
Pre-Sales Professional Customized Solution
Our international sales team consists of engineers with over 5 years of industrial cleaning experience. We match suitable scrubber models, recommend battery schemes and provide free cleaning effect simulation reports. We tailor all plans according to customers’ actual site area, floor material, daily cleaning hours and budget to avoid blind mismatched procurement.
We support OEM & ODM customization for brand dealers. Services include brand logo printing, exclusive machine color matching and functional module adjustment.
In-Sales Full Set of Export Documents & Inspection Support
We provide complete export certification documents. These include CE, ISO, MSDS battery reports, commercial invoices, packing lists and customs clearance certificates. They help customers complete local customs clearance smoothly.
We support factory on-site inspection and third-party quality testing before shipment. We also shoot real-time machine operation videos for remote inspection for customers who cannot visit the factory.
Global After-Sales Spare Parts & Technical Guidance
We maintain a large spare parts warehouse that covers all core and vulnerable components of ride-on scrubbers. We deliver spare parts rapidly to all major global ports.
We offer lifelong free remote video technical guidance. This includes machine operation training, daily maintenance tutorials and fault troubleshooting guides. We can authorize local after-sales service points for regional bulk dealers to realize fast localized maintenance support.
FAQ
Q1: Are you a professional manufacturer or trading company?
A1: We are a direct manufacturer founded in 2004. We own complete independent R&D workshops, automated production lines and professional testing workshops. We welcome global clients for factory visits and third-party quality inspections anytime.
Q2: How efficient is the DIKE 860B floor scrubber?
A2: The machine cleans around 10,000 square meters with one full battery charge and one full water tank. It effectively replaces 5 to 8 manual cleaning workers. It greatly cuts enterprises’ long-term labor costs and daily cleaning expenses.
Q3: What warranty and after-sales services do you provide?
A3: We provide a 1-year full-machine warranty and a 2-year professional warranty for core drive motors and vacuum motors. We arrange fast global spare parts shipment and offer permanent free remote technical support and fault troubleshooting.
Q4: Do you support customized services for distributors?
A4: Yes. We support diverse customization services for global cooperative distributors. These include brand logo printing, exclusive body color matching, functional module upgrades and multi-language operation documents.
